• PC crash protection
• Automatically resets the PC after a system crash
• USB device with 1.9 m USB cable
• Connects to the hardware reset of the main board
• USB device with 1.9 m USB cable
• The control software ClewareControl for timed switching, USBswitch with a graphical user interface and USBswitchCmd for switching via command call is ready for download
• No driver installation needed with Windows® variants that support USB. (® Microsoft Windows is a registered trademark of the Microsoft Corporation.)
• Application Program Interface for easy integration in user applikations
• Linux support available.
• RoHS, CE & EN60950 conform / IP30
• Any USB-AutoReset identifies with a unique serial number
• Integrated reset counter
• Device also configurable as a switch with 2 contacts (USB-Relais)
• Contacts will drive 30 V @ 0.5 A non-inductive load
• About 50 mA power consumption when turned on
• Also available mounted on a slot bracket to use inside PC
• 4 years warranty
• Made in Germany
• Device also available with about 3,7 m USB cable (USB-Relais L)

Description

When a PC used for device monitoring or as a server crashes this may cause problems if the PC is not rebooted very soon. This may be difficult to do if the system is not monitored by a person.

Using the USB-AutoReset, the system reboot could be done automatically without human intervention. The USB-AutoReset is connected to USB bus to receive life signals and with a little cord to the reset port of the main board. The device supplies a reset input which may be connected with the reset switch. This will keep the reset button alive.

If the USB-AutoReset did not get a life signal for some time, the relais inside the device will activate the reset. This is identical to pressing the reset button of the PC. The reset could also be initiated by a command received from the PC. This is used by ClewareControl to do a reset when special conditions are detected (see ClewareControl documentation).

The number of reset operations are counted inside the device. One counter is used for monitoring the timeout resets and another counts the resets initiated by a command. ClewareControl displays these numbers in the state view.

When a reset is done, the first relais is activated for about 2 seconds and is then released to allow the PC to boot. The second relais will also be activated but will be held in this state until a new life signal was detected. Ths could be used to control e.g. a dialer.

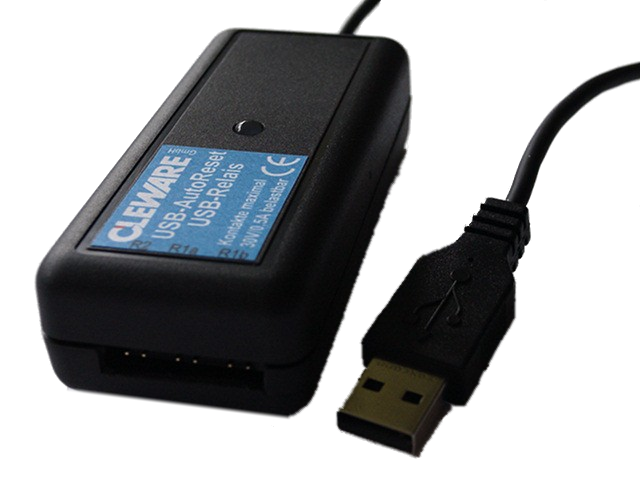

The size of the USB-AutoReset is about 40 x 90 x 23 mm in size. The contacts will be able to switch 30 V @ 0.5 A non-inductive load. On the top of the housing a LED is located to indicate the state. The LED is green if the PC is running and red if the a reset was done. When the USB-AutoReset waits longer than 10 seconds for a sign of life the LED turns to yellow to indicate a kind of prealarm. The total count of done resets is stored in the USB-AutoReset and could be retrieved any time.

The USB-AutoReset should be operated in inner rooms only and should be protected against humidity. The permissible operating temperature range is 10° - 60° Celsius.

The usage of the USB-AutoReset is strictly prohibited in the following applications:

• medical application of any kind
• production and processing of food
• when the failure of the device will harm people

The USB-AutoReset receives the signs of life from the software ClewareControl. The software is running with Windows® variants that support USB. (® Microsoft Windows is a registered trademark of the Microsoft Corporation). The device may receive the signals also from a little application USBwatch supplied on the CD or from a user program which uses the API to send the signals.

No special device drivers are neccessary to use the Cleware USB devices. The already installed device drivers are sufficient.

An application program interface (API) to drive the USB-AutoReset from customer programs is part of the delivery. The API bundles some very simple functions for opening and calming the device. The complex USB device handling is hided.
Linux support is also available. An application program interface (API) is supplied.

Every USB-AutoReset own its unique serial number. This make it easy to identify the devices even when the USB plug position changes or new USB devices are connected. The serial number is accessible through the API and could therefore be used as a simple dongle.

The product USB-AutoReset comes with a 2-year software update service via Internet free of charge. New versions are made available in the Cleware download area and may be downloaded for free.
