|USB-SwitchC CH the PC-controlled
mains switch with swiss mains connectors
- PC-controlled mains switch with swiss mains plug and socket
- USB device with appr. 2 m USB cable
- Switches 230V / 10 A, max 2,300 W (single phase motor rating
max. 550 W) using extremly reliable Finder®-Relais
- Special version ATXX available which turns on with the PC
- The control software ClewareControl for timed switching,
USBswitch with a graphical user interface and
USBswitchCmd for switching via command call is ready for
- No driver installation needed with Windows® Operating Systems since Windows® 2K
(® Microsoft Windows is a registered trademark of the Microsoft Corporation.)
- Application Program Interface for easy integration
in user applikations
- Linux support available
- Access within LabView possible
- RoHS, CE & EN60950 conform/ IP20
- Any switch identifies with a unique serial number, so multiple USB-Switches at a single PC are possible
- About 120 mA power consumption when turned on
- For indoor use only
- Software configurable as an USB-Switch ATXX, the device turns on when PC starts
- 4 years warranty
- Made in Germany
- Device also available with about 3,7 m USB cable (USB-SwitchC CH
The usage of the USB-SwitchC CH is strictly prohibited when the failure of the sensor will harm people.
The PC controlled power switch USB-SwitchC CH turns devices operated
at 230 V AC on and off. The maximum current is 10 A, resulting in a total load of 2.300
W (rated load AC1, non inductive). The single phase motor rating
is 550 W. Please contact the manufacturer of the device to be switched
for more information if you are in doubt. The USB-SwitchC CH should be operated in inner
rooms only and should be protected against humidity. The permissible
operating temperature range is 10° - 60° Celsius.

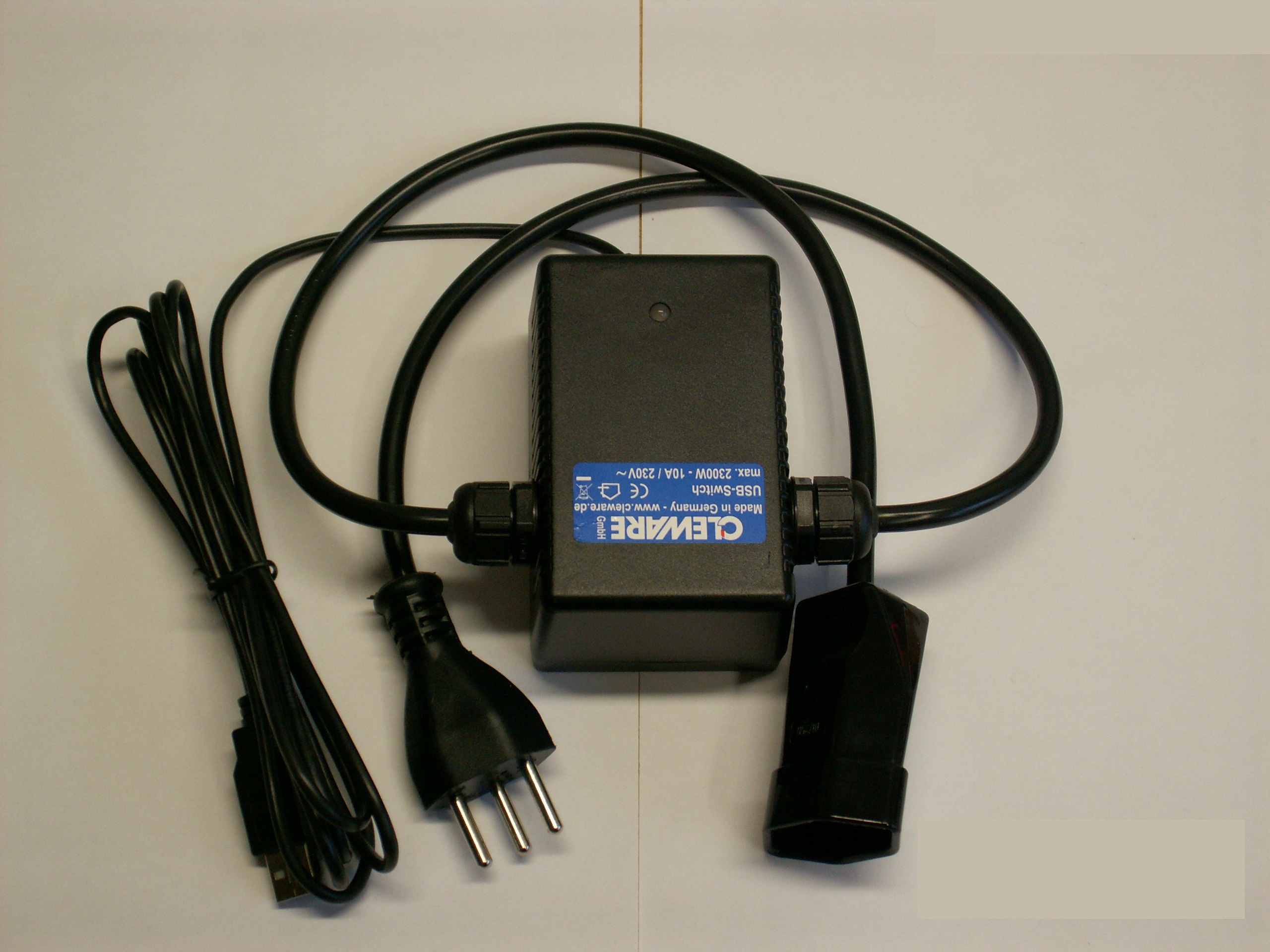

The size of the switch is about 55 x 85 x 80 mm. Two about 0.5 m cables are mounted at the USB-SwitchC CH, two wires uninterrupted and one wire lead through the switching relais. One cable ends in a swiss mains plug, the other one has a swiss mains socket mounted. It could be seen as an 1 m long mains extension cord with a computer controlled switch in the middle. A LED is located on top to indicate the switch
state. The LED is red if the switch is off and it will turn to green
if the switch is on.
The USB-SwitchC CH is available in the ATXX version.
This special mode turns on as soon as the USB controller inside
the USB-Switch is powered on by the PC. This makes it possible to
turn on devices with the PC the same way the pre-ATX power supplys
have done. The switch capability is still available, so the power
may turned off by the user at any time, e.g. to save power.
About 32 switches may be connected to a PC using
several HUBs. The HUBs used must use a separate power supply. When
using Cleware USB devices it is not neccessary to install device
drivers. The standard USB drivers are sufficient. So the system
stability will not be harmed.
The USB-SwitchC CH will be delivered with the software ClewareControl for displaying and switching. For easy access a very simple graphical program called USBswitch controls the switch just by clicking on icons. And for integration in batch programs, a command line tool USBswitchCMD is availableThe software is running with Windows®
98, Windows® 98 SE, Windows® ME, Windows® 2000, Windows®
XP and Windows® .NET. (® Microsoft Windows is a registered
trademark of the Microsoft Corporation).
The software ClewareControl may turn the USB-SwitchC CH into a time
switch. Different repeat interval, start and end times may be specified.
Some very interesting applications could be created with the combination
of an USB-SwitchC CH with an USB-Temp sensor. The software ClewareControl
will then turns the USB-SwitchC CH on and off in direct reaction of
the temperature measured by the sensor. This could be used to control
heating or cooling devices.
The application ClewareControl could be also used to turn the USB-SwitchC CH into a time clock. Up to 256 different time actions may be defined
for each connected USB-SwitchC CH. This includes actions based on the
day of the week or day in month. In addition repeat intervals form
several hours down to 3 seconds may be defined.
The USB-SwitchC CH may also be controlled via the network when operated with ClewareControl. The connection
is established with the TCP/IP protocol. On the remote control PC
the USB-SwitchC CH appears like a local device and could be handled
the same way. Several devices even on different PCs could be controlled
An application program interface (API) to drive the USB-SwitchC CH from customer programs is part of the delivery. The API bundles
some very simple functions for opening and reading the device. The
complex USB device handling is hided.
Linux support is also available. An application
program interface (API) and a simple example for turning an USB-SwitchC CH is supplied.
Every Cleware device identifies with an unique serial number. This make it easy to
identify the devices even when the USB plug position changes or
new USB devices are connected. The serial number is accessible through
the API and could therefore be used as a simple dongle.
PC programs may fail or may be interfeared through other programs.
Don't connect devices to the USB-SwitchC CH that may cause harm if the
switch turns on unexpected!
