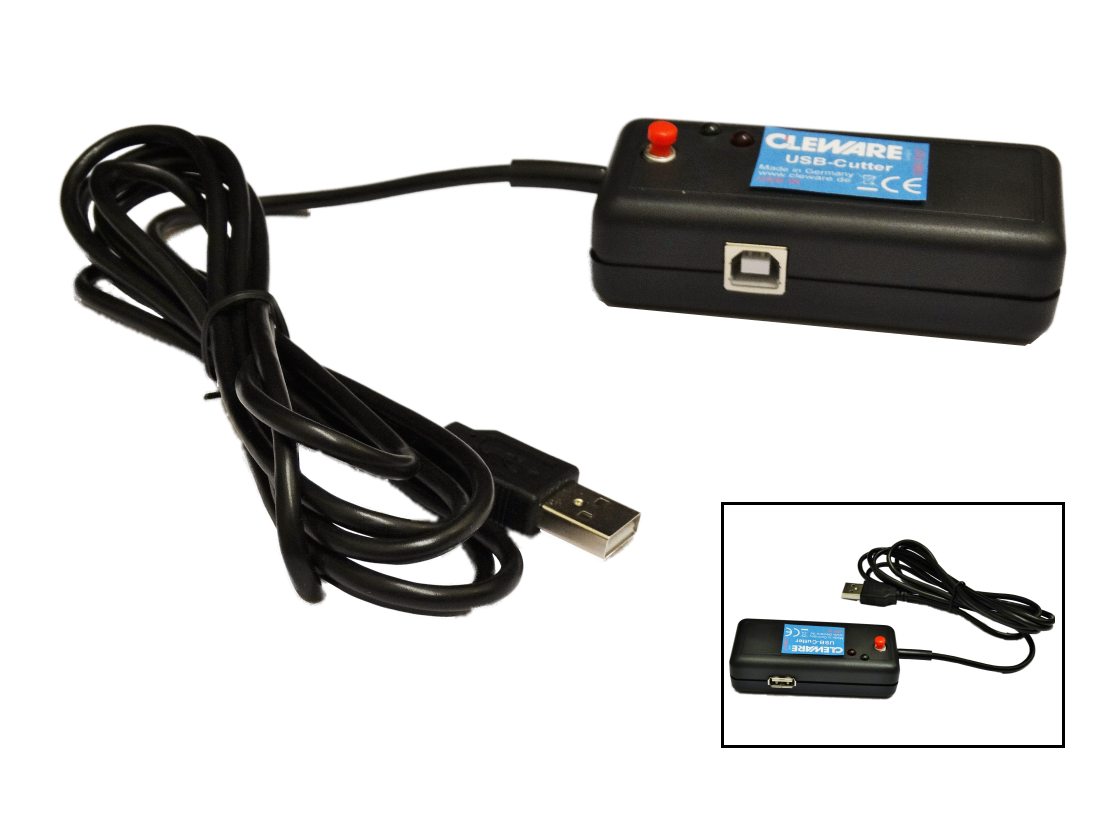

Illustration USB Cutter S

short description

• PC-controlled switch to dis- and reconnect USB devices
• USB-device with 1.9 m USB-cable
• Cuts data lines and delayed the supply lines
• behaves like USB device is handled manually
• Controlled USB connection is fully seperated from the-USB Cutter
• Application Program Interface for easy integration in user applications
• The control software ClewareControl for timed switching, USBswitch with a graphical user interface and USBswitchCmd for switching via command call is ready for download
• No driver installation needed with Windows® Operating Systems since Windows® 2K (® Microsoft Windows is a registered trademark of the Microsoft Corporation.)
• Linux support available.
• RoHS, CE & EN60950 conform/ IP30
• For indoor use only
• Any switch identifies with a unique serial number
• 4 years warranty
• Made in Germany
• also available devices:
  • USB Cutter L -> cable-length ca. 3,7m
  • USB Cutter S -> with switch for additional manuell control
  • USB Cutter S L ->with switch for additional manuell control and cable-length ca. 3,7m
  • USB Cutter M -> only with switch for manuell control

Description

The USB-Cutter was created with three applications in mind. The first scenario is the testing of USB devices in industial test fields. Because the cutting and connecting is realized the same way as human will handle the USB plug it is an ideal automation device for this purpose. When disconnecting, the data lines will be cutted first and after about 20 ms the power will be cutted second. Connecting is realized by applying power first and data lines 20 ms later. The controlled USB connection is electrically fully seperated from the USB-Cutter.

Some complex USB device sometimes crashes inside. Often the only way to get them work again is to disconnect them physically from the PC. Using the USB-Cutter, this could be done by software control.

Another application is the use of high end cameras connected to a PC. Some of these will not accept manual commands like taking a shot as long as the USB is connected. The USB-Cutter will solve this inconvinience and the control could bounce between the PC and the camera just by clicking the button of our application USB-Switch.

The size of the switch is about 40 x 90 x 23 mm. Left and right there are one USB socket type A and one USB socket B were located. On top of the device are one green and one red LED to display the status of the USB Cutter.

The USB-Cutter should be operated in inner rooms only and should be protected against humidity. The permissible operating temperature range is 10° - 80° Celsius.

About 32 switches may be connected to a PC using several HUBs. The HUBs used must use a separate power supply. When using Cleware USB devices it is not neccessary to install device drivers. The standard USB drivers are sufficient. So the system stability will not be harmed.

The USB-Cutter will be delivered with the software ClewareControl for displaying and switching. For easy access a very simple graphical program called USBswitch controls the switch just by clicking on icons. And for integration in batch programs, a command line tool USBswitchCMD is available. The software is running with Windows® 98, Windows® 98 SE, Windows® ME, Windows® 2000, Windows® XP and Windows® .NET. (® Microsoft Windows is a registered trademark of the Microsoft Corporation).

For easy access a very simple graphical program also comes with the device. The program USBswitch controls the switch just by clicking on icons. And for integration in batch programs, a command line tool USBswitchCMD is available.

An application program interface (API) to drive the USB-Cutter from customer programs is part of the delivery. The API bundles some very simple functions for opening and reading the device. The complex USB device handling is hided.

Linux support is also available. An application program interface (API) and a simple example for turning an USB-Cutter is supplied.

Please note:
PC programs may fail or may be interfeared through other programs. Don't connect devices to the USB-Contact that may cause harm if the switch turns on unexpected!

Graph

The usage of the USB-Contact is strictly prohibited when the failure of the sensor will harm people.
